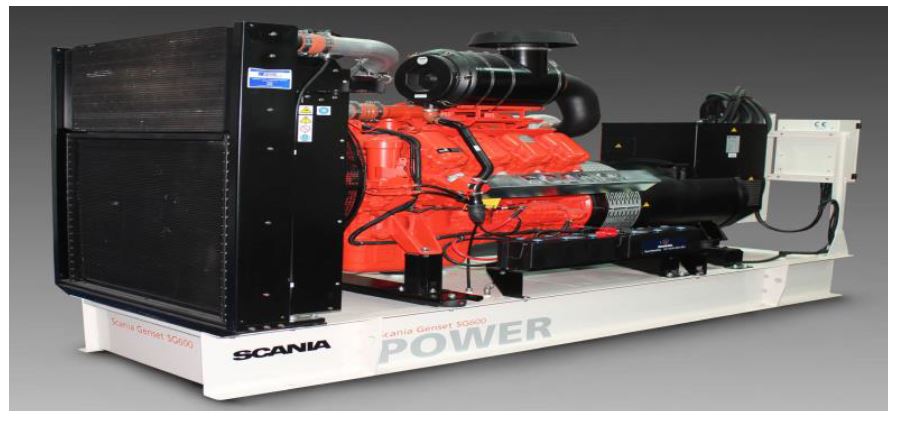

S770M
S770M
Electronic governor
Mechanically welded chassis with antivibration suspension
Main line circuit breaker
Radiator for wiring temperature of 48/50°C max with mechanical fan
Protective grille for fan and rotating parts
9 dB(A) silencer supplied separately
Charger DC starting battery with electrolyte
24 V charge alternator and starter
Delivered with oil and coolant -30°C
Manual for use and installation
SPECIFICATIONS
S770M
SCANIA Engine type
Meccalte Alternator type
Performance class
DC16 078A
ECO40 VL4B
G2
DIMENSIONS COMPACT VERSION
Length (mm)
Width (mm)
Height (mm)
Dry weight (kg)
Tank capacity (L)
3474
1520
1910
5440
1000
GENERAL CHARACTERISTICS
Frequency (Hz)
Reference voltage (V)
Max power ESP (kVA)
Max power ESP (kWe)
Max power PRP (kVA)
Max power PRP (kWe)
Intensity (A)
Standard Control Panel
Optional control panel
50
400/230
770
560
700
616
923
DSE 7110
DSE 7210
POWER
Voltage
415/240
400/230
380/220
kWe ESP
630
630
630
kVa ESP
788
788
788
kWe PRP
568
568
568
kVa PRP
710
710
710
Standby Amps
1096
1137
1198
ENGINE SPECIFICATIONS
GENERAL ENGINE DATA
Engine model
Cylinder arrangement
Displacement (C.I.)
Bore (mm) x Stroke (mm)
Compression ratio
Speed (RPM)
Pistons speed (m/s)
Maximum stand-by power at rated RPM (kW)
Frequency regulation (%)
BMEP (bar)
Governor type
SCANIA Sweden DC16 078 A,4-temps, Turbo , Air/Air DC 8
V
16.4
130 x 154
16.7:1
1500
8.0
680
+/- 0.5%
30.26
Electronic
COOLING SYSTEMS
Radiator & Engine capacity (L)
Max water temperature (°C)
Outlet water temperature (°C)
Fan power (kW)
Fan air flow w/o restriction (kg/s)
Available restriction on air flow (pa)
Type of coolant
Thermostat (°C)
68
90
95
13
20
260
SCANIA
82-87
EMISSIONS
Emission PM (g/kW.h)
Emission CO (g/kW.h)
Emission HCNOx (g/kWh)
Emission HC (g/kW.h)
N/A
N/A
N/A
N/A
EXHAUST
Exhaust gas temperature (°C)
Exhaust gas flow (kg/m)
Max. exhaust back pressure (mm EC)
524
45
750
FUEL
Consumption @ 110% load (L/h)
Consumption @ 100% load (L/h)
Consumption @ 75% load (L/h)
Consumption @ 50% load (L/h)
158
141
104
69
OIL
Oil capacity (L)
Min. oil pressure (bar)
Max. oil pressure (bar)
Oil consumption 100% load (g/kWH)
Carter oil capacity (L)
40-48
.7
6
<0.2
N/A
HEAT BALANCE
Heat rejection to exhaust (kW)
Radiated heat to ambiant (kW)
Haet rejection to coolant (kW)
414
56
192+121
AIR INTAKE
Max. intake restriction (mm EC)
Intake air flow (kg/m)
625
43
